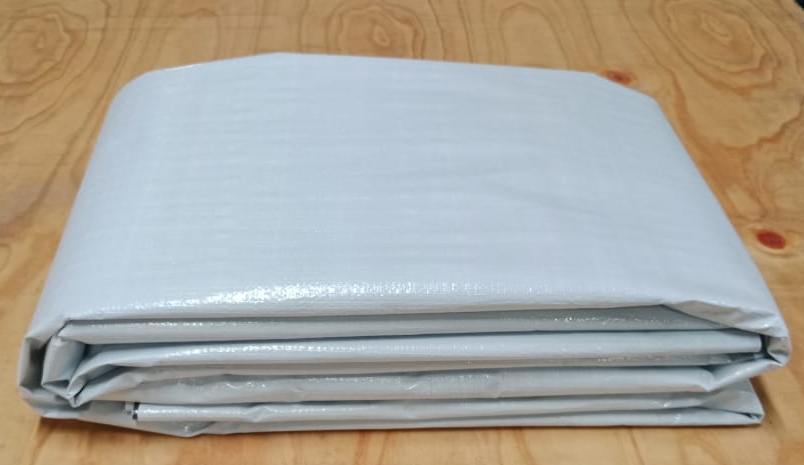

TARPAULIN ECO-DESIGN
VARIOUS SIZES
✓ Reinforced flexible tarpaulins for temporary shelter or protection
✓ Development in line with the ICRC / IFRC / UNHCR Eco-Design Tarpaulin Project 2021-2023
✓ Made of woven high-density polyethylene (HDPE) black fibres fabric, laminated on both sides with a white low-density polyethylene (LDPE) coating
✓ With reinforcement bands
✓ Flame resistant, waterproof, UV-resistant
✓No use of harmful FR chemicals (like bromine, antimony)
✓ Available in various sizes
✓ More sustainable
✓ Made with up to 15% recycled PE material and improved strength
Product in the Reltext ECO-EFFICIENCY range
ICRC / IFRC / UNHCR standard
Specifications
Length x Width
4 x 6 m ± 1%
4 x 10 m ± 1%
4 x 20 m ± 1%
4 x 60 m ± 1%
4 x custom size ± 1%
Material
The tarpaulin is composed of woven high-density polyethylene (HDPE) black fibres fabric, laminated on both sides with a white low-density polyethylene (LDPE) coating. Contains up to 15% recycled PE material.
Colour
White with dark grey reinforcement bands I Inner black fibres to ensure opacity.

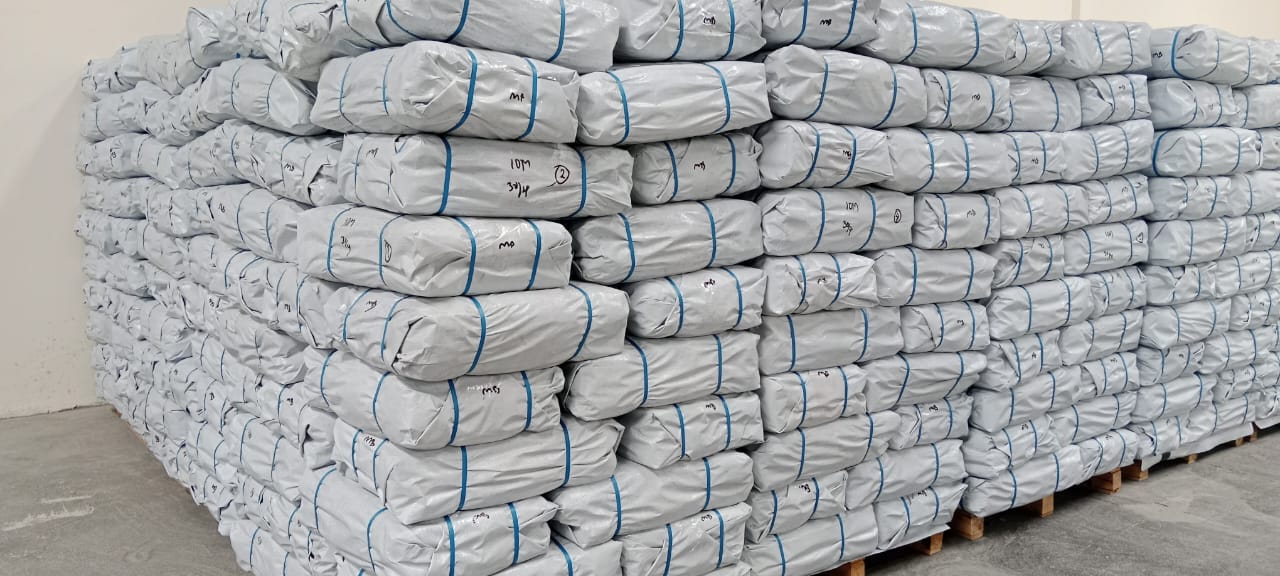

Packing unit (P.U.)
Bale
QTY P.U.
5 pcs
P.U. MEASURMENTS
DIMENSIONS: 76 x 57 x 13 cm WEIGHT: 23,25 kg
VOLUME: 0,054 m3
QTY PALLET
18 bales per CRI pallet
PALLET MEASURMENTS DIMENSIONS: 115 x 75 x 115 cm
WEIGHT: 430 kg VOLUME: 0,992 m3
LOADING
PER 20 FT DC 2750 pcs unpalletized I 2700 pcs palletized PER 40 FT DC 5500 pcs unpalletized I 5130 pcs palletized PER 40 FT HC 5500 pcs unpalletized I 5130 pcs palletized.
Professional Editing
UNHCR specifications
A line featuring UNHCR logos printed on both sides of the plastic tarpaulin
GENERAL
Logo printing upon customer request
LIFE SPAN
Product maintains sheltering and waterproof capacities for four years under the strongest weather conditions
SHELF LIFE
Min. 6 years
FR
EN 13823+A1
No Flame Retardant (FR) additives (bromine, antimony)
UV Resistance
Max. 20% loss on mechanical strength after 1500 UV exposure
TEMPERATURE RESISTANCE
-20 to 80°C
TENSILE STRENGTH
Min. 500 N and 15% to 25% elongation in warp and weft as per ISO 1421-1
Min. 700 N inside the reinforcements bands as per ISO 1421-1
TEARING STRENGTH
Min. 100 N in warp and weft as per ISO 4674
